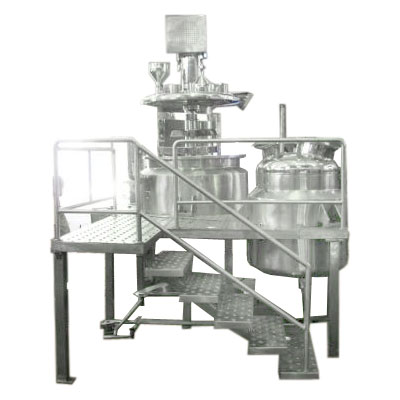

Ointment Plant with Inline Homogenizer

Vats & Vessels Ointment Plants are particularly used for Ointment, Cream, Lotion, Syrups etc.

Ointment Plant mainly consists of following equipments:

  • Manufacturing Vessel - Along with Baffles & Jacket
    Main Agitator Anchor type with Teflon scrapers
    Hydraulic Lifting Arrangement
    Inline Homogenizer
  • Wax & Water Phase Vessel Baffles Jacket
    Agitator Propeller Type
    Storage Tank
  • Working Platform - Dimpled Sheet
  • Pipelines - Water Phase & Wax phase vessels are connected to the Main manufacturing vessel through individual pipelines. Inline conical filters are provided after each vessel bottom outlet.
    Finished products are pumped out from the manufacturing vessel, through a third line by a lobe pump, into the storage tank. This line also has an inline conical filter. The storage tank bottom outlet is connected to a metering pump. All connections like bends, tees, valves, inline sight glasses are of Triclover/Din Standards.
  • Finished products are pumped out from the manufacturing vessel, through a third line by a lobe pump, into the storage tank. This line also has an inline conical filter. The storage tank bottom outlet is connected to a metering pump. All connections like bends, tees, valves, inline sight glasses are of Triclover/Din Standards.

Application

  • Emulsification - Toothpaste, Oil & Paraffin.
  • Suspension - Pigments, Polishes
  • Homogenization - Fruit Juices, Sauces and other semi-liquid food products

Special Features of Vats & Vessels Ointment Plant

  • Filters provided at the bottom can be easily dismantled and cleant, sanitized or sterilized.
  • Capacity - 50 Ltr. to 5000 Ltr.
