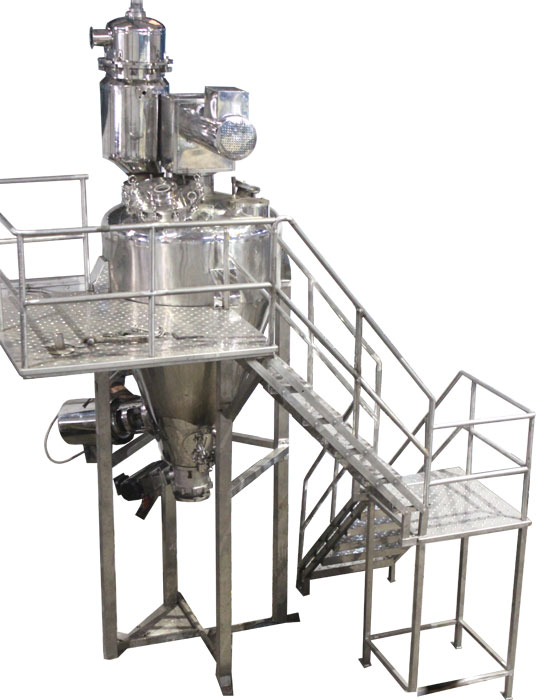

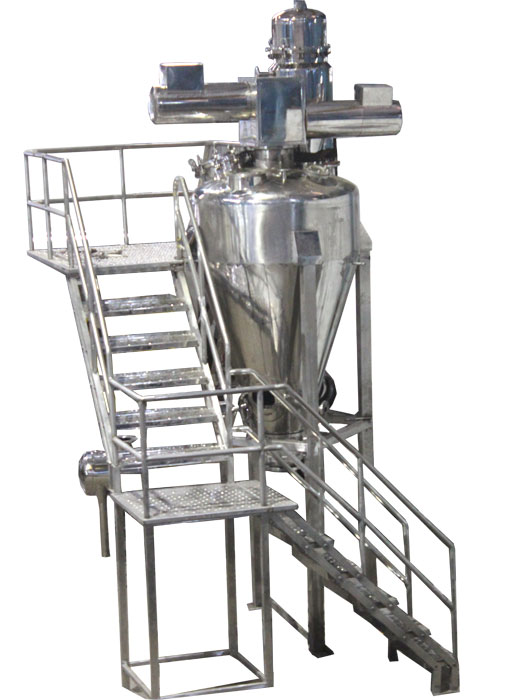

V - Cone Vacuum Mixer Dryer (Nauta model)
VVPL-V-Cone mixer dryer are used in the Pharmaceutical, Cosmetic, Chemical, Food and other process industries. Products which are friable, shear sensitive, voluminous and heat sensitive can be easily dried in the V-cone Dryer. The large handling capacity coupled with a low power requirement makes it one of most efficient and quick Drier.
Due to the application of vacuum, drying is faster and more efficient as the boiling point of the products being dried reduces.
The V Cone Vacuu Mixer Dryer has got a small footprint and is ideally suited to multi-storied facilities.
The product container is in a V shape due to which the materials are discharged totally from the bottom. Additional the mixing screw forces the materials to be discharged completely.
Working Principle
A combination of three mixing effects is produced - The mixing screw rotates about its own axis and it also rotates around the periphery of the cone continuously. First the screw lifts the product from the bottom to the top of the vessel and then the movement of the arm makes the product to move across the cone’s periphery. Combining these effects with gravity produces excellent mixing effect.
Special Features of VVPL V-Cone Mixer Dryer
- Constructed in SS 304, SS 316, Hastelloy C276.
- Discharge through remotely operated Vacuum Enabled Valve, Pneumatic or motorized valves.
- Central operations with constant monitoring of Speed, Temperature, Pressure and other parameters. PLC based controls.
- Capacity - 25 Ltr. to 25,000 Ltr.
- Applications - Excellent for Chemicals, Bulk Drugs.
