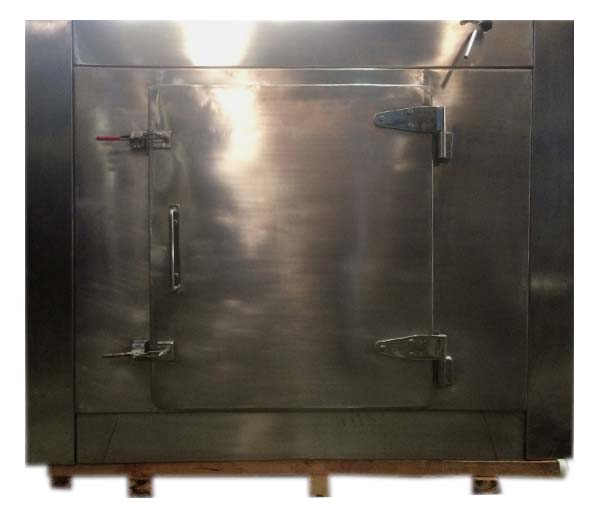

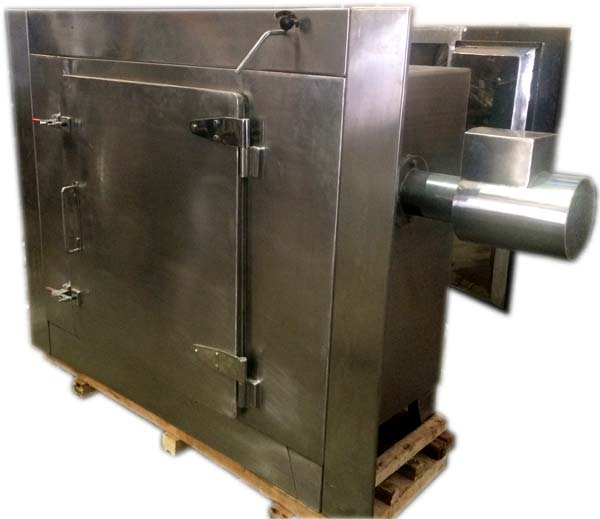

Tray Dryer
Vats And Vessels Tray Dryers are useful in Pharmaceutical, Chemical, Dyestuffs, Food & Automobile Industries.

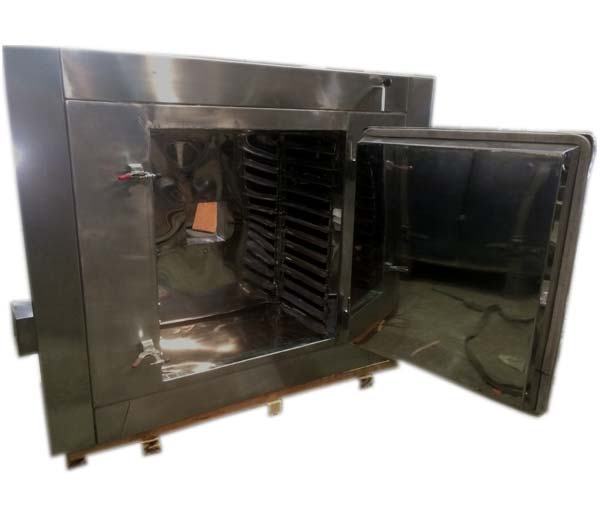

A Tray Dryer is an enclosed, insulated housing in which Trays are placed on angled rack. Material to be dried is placed on the trays. Heating media is Hot Air, and heat transfer is direct from gas to solid.
Electric heaters and circulation fan arrangement maintains the constant temperature in the dryer and ensures uniform circulation of hot air.
Tray Dryers are available in 12, 24, 48, & 96 tray capacity models, constructed in Stainless Steel 304 / 316 / 316L cGMP construction
Special Features of Vats & Vessels Tray Dryer
- Fan is dynamically balanced with specially sealed bearing to withstand the high temperature.
- Heating Arrangement - Electrical / Steam heating.
- Designed for uniform circulation of hot air in the drying chamber.
- Tunnel type dryers wherein trolleys are placed one behind the other and double door loading.
- Electric heater terminals situated outside the hot zone in case of electrically heated dryers. Heaters are accessible and replaceable from outside the dryer.
- The front doors are explosion proof and are locked with the help of spring loaded ball latches with suitable pressure.
- Tray Dryer has a filter for fresh air inlet and an adjustable air outlet.
